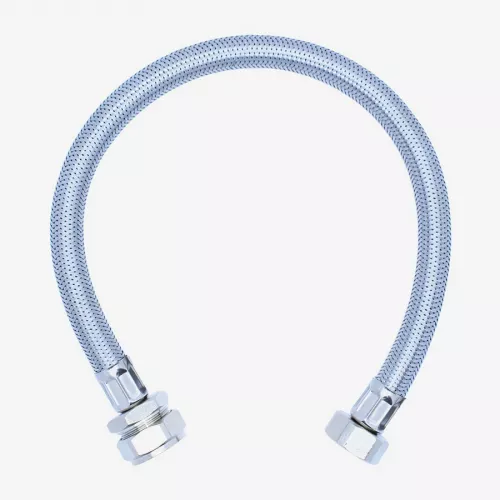

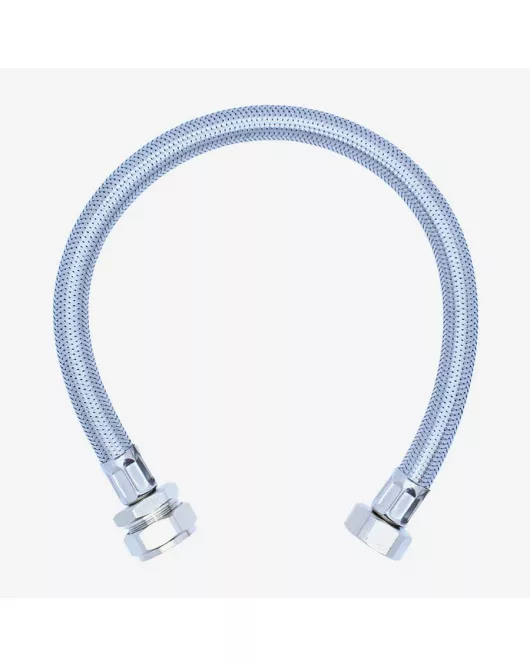

Viva Sanitary 3/4" x 22mm Stainless Steel Braided Hose – 500mm (SSH5/A)

The 500mm stainless steel braided hose is engineered for strength, flexibility and long‑lasting performance. Designed to resist kinks, crushing and deformation, this hose is ideal for plumbing, heating and industrial applications where a secure, high‑flow connection is required.

It features a 22mm compression fitting at one end and a 3/4" female BSP thread at the other, providing a robust and versatile connection for both residential and commercial installations. The stainless steel outer braid offers excellent durability and protection, while the synthetic rubber inner tube ensures consistent flow and dependable performance under pressure.

Reinforced crimped ends deliver a firm, leak‑resistant seal, and with a 10 bar working pressure and a temperature range from ‑5°C to 90°C, this hose is built to perform in demanding environments. Fully compliant with EN1254‑2, it meets industry standards for quality and safety.

Key Features

• 500mm long stainless steel braided hose
• 22mm compression fitting x 3/4" female BSP
• Flexible, kink‑resistant design
• Stainless steel outer braid for enhanced durability
• Synthetic rubber inner tube for long service life
• Reinforced crimped ends for a secure, leak‑free connection
• Suitable for industrial, commercial and residential applications
• 10 bar working pressure
• Working temperature: ‑5°C to 90°C

Specifications

Product Code: SSH5/A

Length: 500mm

Bore Size: 13mm

Hose Diameter: 17mm

Fittings: 22mm Compression x 3/4" Female BSP

Working Pressure: 10 bar

Working Temperature: ‑5°C to 90°C
