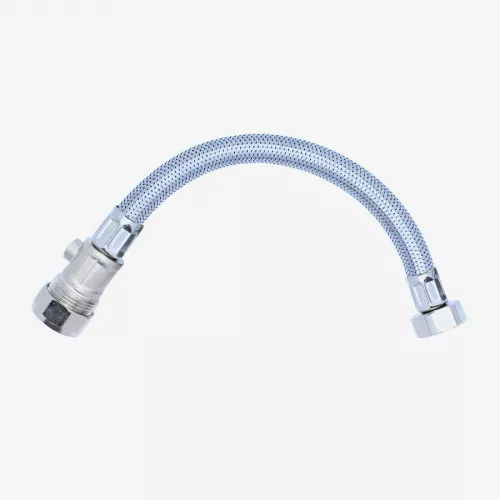

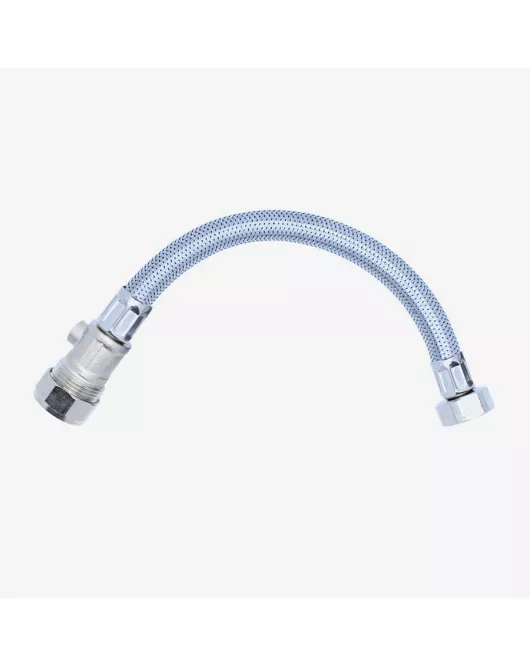

Viva Sanitary 3/4" x 22mm Stainless Steel Braided Hose with Isolator – 300mm (SSH6)

The 300mm stainless steel braided hose with integrated isolator valve is engineered for strength, flexibility and long‑lasting performance. Designed to resist kinks, crushing and deformation, this hose is ideal for plumbing, heating and high‑flow applications where reliable flow control is essential.

It features a 22mm compression fitting at one end and a 3/4" female BSP thread at the other, along with a built‑in quarter‑turn isolating valve for quick and convenient shut‑off during installation or maintenance. The stainless steel outer braid provides excellent durability and protection, while the synthetic rubber inner tube ensures consistent flow and dependable performance under pressure.

Reinforced crimped ends deliver a firm, leak‑resistant seal, and with a 10 bar working pressure and a temperature range from ‑5°C to 90°C, this hose is built to perform in demanding environments. Fully compliant with EN1254‑2, it meets industry standards for quality and safety.

Key Features

• 300mm long stainless steel braided hose
• Integrated quarter‑turn isolator valve
• 22mm compression fitting x 3/4" female BSP
• Flexible, kink‑resistant design
• Stainless steel outer braid for enhanced durability
• Synthetic rubber inner tube for long service life
• Reinforced crimped ends for a secure, leak‑free connection
• Suitable for industrial, commercial and residential applications
• 10 bar working pressure
• Working temperature: ‑5°C to 90°C

Specifications

Product Code: SSH6

Length: 300mm

Bore Size: 9mm

Hose Diameter: 13mm

Fittings: 22mm Compression x 3/4" Female BSP

Valve Type: Quarter‑turn Isolator

Working Pressure: 10 bar

Working Temperature: ‑5°C to 90°C
